LS734 Linear Stirling Cryocooler for Cooling MCT Cooled Infrared Detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Linear Stirling Cryocooler | MTTF | ≥20000hrs |
|---|---|---|---|
| Weight | ≤1.0kg | Steady Power Consumption | ≤10W (430mW@77K@20℃) |
| Max Power Consumption | 50W | Integration Method | IDDCA |
| Highlight | LS734 Linear Stirling Cryocooler,MCT Cooled Infrared Detector Cryocooler,MCT Cooled Cryocooler |
||
Product Description

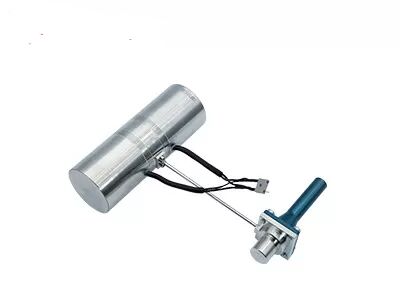

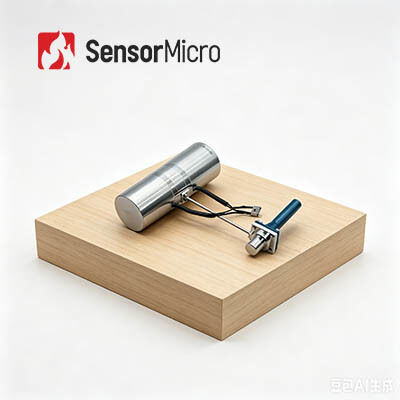

LS734 Linear Stirling Cryocooler for Cooling MCT Cooled Infrared Detector
Product Description
LS734 linear stirling cryocooler adopts moving magnet linear motor, self-lubricating coating and other technologies to effectively improve its reliability and operating life. In addition, the compressor and dewar are connected by connecting pipes, which can realize a flexible layout in various application scenarios.
Main Features
Fast cooling, wide operating temperature range, low vibration, low noise, high reliability; meet the needs of 7*24H long-time operation
Applications
Gas Leak Monitoring, Security Monitoring and other scenarios that require long time operation
Product Specifications
| Model | LS734 |
| Type | Linear Stirling Cryocooler |
| MTTF | ≥20000hrs |
| Maximum Size (mm) | Compressor Φ46×122 Expander Φ40×88 |
| Weight | ≤1.0kg |
| Cooling Power | (@77K@20℃)≥1300mW |
| Operating Temperature | -45℃~+71℃ |
| Storage Temperature | -55℃~+85℃ |
| Environmental Specification | GJB150A-2009 |
| Input Voltage | 24DC |
| Max Power Consumption | 50W |
| Steady Power Consumption | ≤10W (430mW@77K@20℃) |
| Cooling Time | ≤4min (450J@77K@20℃) |
| Cold Finger Dimension | Φ8mm |
| Electronics | Built-in |
| Integration Method | IDDCA |
About Global Sensor Technology
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
