MWIR HgCdTe Integrated Dewar Cooler Assembly 320x256 / 30μm Cooled IR Detector

  • MWIR HgCdTe Integrated Dewar Cooler Assembly 320x256 / 30μm Cooled IR Detector
Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number C330M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 320x256/30μm NETD ≤9mK (F2); ≤15mK (F4)
Spectral Range 3.7~4.8μm MW Size 142x58.5x71mm
Highlight

HgCdTe Integrated Dewar Cooler Assembly

,

Integrated Dewar Cooler Assembly 320x256

,

MWIR Cooled Ir Detector
Leave a Message
Product Description
About C330M MWIR Cooled Infrared Detector



MWIR HgCdTe Cooled Infrared Detector 320x256 / 30μm Integrated Dewar Cooler Assembly



Product Description

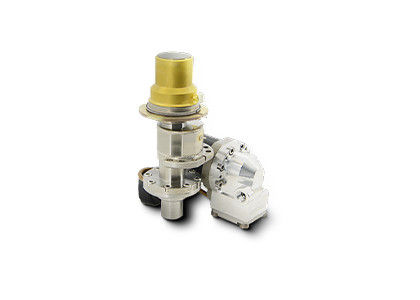

C330M MWIR is one of the HgCdTe/MCT cooled integrated dewar cooler assemblies developed by Global Sensor Technology (GST). It is with the most classical 320x256@30μm spec and is among the earliest products in GST product portfolio for nearly 10 years. Therefore, it has been widely used in the most commonly used applications such as day/night surveillance, handheld thermal viewers, payloads, gas leak detection cameras and many other infrared electro-optical systems.



Its wavelength, F number, mounting surface can be customized and multiple cryocoolers are available.



 Main Features



- Resolution: 320x256

- Pixel Pitch: 30μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C330M MW
Material MCT
Resolution 320x256
Pixel Pitch 30μm
Spectral Range 3.7μm～4.8μm MW
Working Mode Snapshot, ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Number of Output 1 or 4; Up to 6.6Mpixel/s per Output
NETD F2: ≤9mK
F4: ≤15mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046H
Steady Power Consumption ≤6W @ RS058
≤6W @ RS046H
Max Power Consumption ≤12W @ RS058
≤11W @ RS046H
Power Supply RS058: 24V DC
RS046H: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046H
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
