Low Consumption Integrated Dewar Cooler Assembly With Built In Drive Electronics
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Power | (@77K@20℃)＞550mW | Stable Power Consumption | ＜7W (250mW@77K@20℃) |
|---|---|---|---|
| Working Temperature | -45℃~+85℃ | Size | 116x58.5x71mm |
| Highlight | Low Consumption Dewar Cooler Assembly,Built In Electronics Dewar Cooler Assembly,Integrated Dewar Rotary Stirling Cryocooler |
||
Product Description

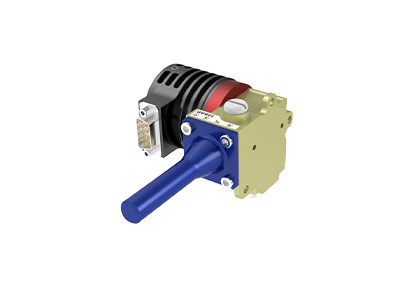

RS058 Integrate Detector Dewar Cooler Assembly
Low Noise Integrated Dewar Cooler Assembly With MTTF More Than 10000hrs
Product Description
RS058 is an integral rotary stirling cryocooler that integrate coolers with an infrared focal plane into an evacuated dewar. With the MTTF more than 10000hrs, cooling power＞550mW (@77K@20℃), cooling time <5mins (250J@77K@20℃), the RS058 cryo cooler will exceed your expectations that it is integrated into various terminal products and operates in a very long time.
As a leading infrared detector and thermal imaging module supplier, Global Sensor Technology (GST) has provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for WLP uncooled VOx microbolometer sensors developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.
Main Features
- MTTF＞10000hrs
- Cooling Power: (@77K@20℃)≥550mW
- Cooling Time: ≤5mins (250J@77K@20℃)
- Low Consumption
- Low Noise
- Built-in Drive Electronics
Product Specifications
| Model | RS058 |
| Type | Integral Rotary Stirling Cryocooler |
| MTTF | ≥10000hrs |
| Maximum Size (mm) | 116×58.5×71 |
| Weight | ≤430g |
| Cooling Power | (@77K@20℃)≥550mW |
| Operating Temperature | -45℃~+71℃ |
| Storage Temperature | -55℃~+85℃ |
| Environmental Specification | GJB150A-2009 |
| Input Voltage | 18-28VDC/12-16VDC |
| Max Power Consumption | ≤14W |
| Steady Power Consumption | ≤5.5W(220mW@77K@20℃) |
| Cooling Time | ≤5min(250J@77K@20℃) |
| Cold Finger Size | Φ8mm |
| Electronics | Built-in |
| Integration Method | IDDCA |
Industrial Applications
The RS058 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.
Our Advantages
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
