DVP Interface Infrared Thermal Camera Module 120x90 8~14μm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Spectral Range | 8~14μm | NETD | ≤60mK |
|---|---|---|---|
| Resolution | 120x90 | Pixel Pitch | 17μm |
| Temperature Range | -20℃~+120℃ (Customizable) | Size | 8.5x8.5x9.16mm |
| Highlight | DVP Interface Thermal Camera Module,Thermal Camera Module 120x90,14um Thermal Camera Core |
||
Product Description

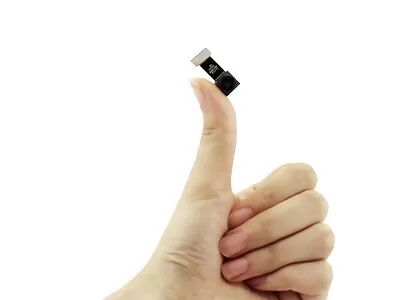

TIMO120 Thermal Camera Core
Miniature VOx FPA 120x90 / 17μm Thermal Imaging Camera Core Integrated in Infrared Cameras
Product Description
TIMO120 miniature infrared module integrates wafer-level optics, 120x90 / 17μm wafer level package (WLP) detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.
TIMO120 thermal imaging core is oriented for optimized size, weight, power, cost (SWaP-C) infrared imaging applications. Its super miniature structure and ultralow power consumption are convenient to be integrated into various smart devices, thermal imagers or mobile terminals with strict requirements on cost, size and weight.
Main Features
- Minimum WLP infrared module, dimension at 8.5x8.5x9.16mm
- DVP Interface, compatible with various embedded platforms
- Visible camera module equivalent, directly integration
- Complete SDK development kit
- Low power design for extend longer operating time
- Low cost for many kinds of intelligent applications
Product Specifications
| Model | TIMO-120 |
| IR Detector Performance | |
| Resolution | 120x90 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | ≤60mK |
| Lens Type | WLO |
| Focus Mode | Fixed Zoom |
| HFOV | 90°/50° |
| Depth of Field | 10cm to Infinity |
| Frame Rate | 1~30Hz (Customizable) |
| Temperature Measurement | |
| Temperature Range | -20°C ~ +120°C (Customizable) |
| Temperature Accuracy | Customizable (Meet the Requirements of Body or Industrial Thermography) |
| Interface/Control | |
| AVDD | 3.6V±0.05V |
| VSK/VDET | 4.7±0.05V |
| DVDD | 1.8V±0.05V |
| Interface | Digital Interface |
| Power Consumption | 45mW (Typical Mode); 9mW (Low Power Mode) |
| Physical Characteristics | |
| Dimension (mm) | 12x10x5.48 (HFOV=90°); 8.5x8.5x9.16 (HFOV=50°) (The Specifications Shall Prevail) |
| Operation Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
Industrial Applications
The TIMO120 infrared thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.
Global Sensor Technology Team
FAQs
1. Difference between Thermal Image & Visual Image about Lens
The main difference of the lens is that thermal imaging lens must be made of special materials. The main reason is that infrared heat radiation cannot pass through glass (silicon), so special lenses made of special germanium, chromium and other metal materials are used. This also causes the price of thermal imaging lens to be a bit higher than that of the optical lens, which also increases the price of the whole device.
2. Difference between Thermal Image & Visual Image about Imaging Principle
Their imaging principles are basically the same. Imaging devices image light waves within a certain wavelength range. In nature, the wavelength range of visible light is from 0.39μm to 0.78μm, while the wavelength range of infrared thermal radiation is from 0.75μm to 1000μm. As long as target temperature is higher than absolute zero -273 ℃, there will be infrared radiation.
