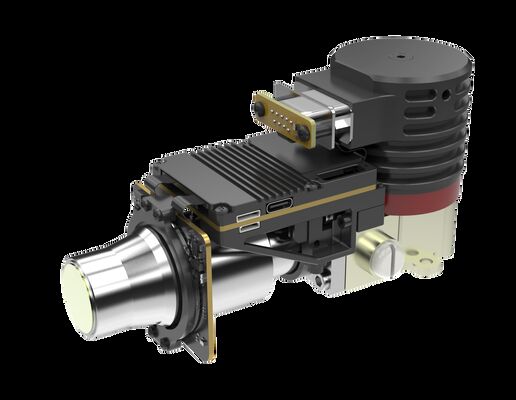

Cooled Optical Gas Imaging MWIR Camera Module 24V For Visualizing Ethane Leaks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Gas Leak Detection | Cryo Cooler | RS058/RS058I |
|---|---|---|---|
| Detector Resolution | 320x256 | Pixel Size | 30μm |
| NETD | 10mK (F1.5) | Spectral Range | 3.2±0.1~3.5±0.1μm |
| Highlight | MWIR Camera Module 24V,Ethane Leaks MWIR Camera Module,Cooled Gas Imaging MWIR Module |
||
Product Description
320x256 30μM MWIR Cooled Optical Gas Imaging Thermal Module For Visualizing Gas Leaks
Product Description
EYAS330G cooled AD module is developed on the basis of C330M-G cooled infrared detector and equipped with high performance signal processing circuit. It is an accelerator for customers who have difficulty in starting fast optical gas imaging system integration. By utilizing the infrared technology, the invisible volatile organic compounds (VOCs) leaks can be quickly and effectively detected to ensure the safety in production, transportation and processing of petrochemical enterprises.
Main Features
Shorten Development Cycle
• Adopt high-performance signal processing circuits to realize the conversion of analog signal to digital signal
• Support 12V power supply for explosion-proof certification
Easy & Fast Integration
• Cameralink interface output 16-bit RAW data, serial port control
• Integrated structure that has consistent dimension with detector
Product Specifications
| Model | EYAS330G | EYAS330G2 |
| Performance | ||
| Resolution | 320×256 | |
| Pixel Size | 30μm | |
| Cryocooler | RS058 | RS058I |
| Spectral Range | 3.2μm±0.1μm~3.5μm±0.1μm | |
| Cooling Time (25℃) | ≤6min30s | ≤7min |
| Typical NETD | 10mK (F1.5) | |
| Working Mode | ||
| Frame Rate | 1~200Hz (Adjustable) | |
| Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming | |
| Electrical Specifications | ||
| Standard External Interface | QSH 60pin | |
| Digital Video | Cameralink Output: 16bit Raw Data | |
| External Sync | CC1: INT Frame External Sync CC2: MC External Sync |
|
| Communication | Cameralink Serial Port: TFG+/-, TC+/-, 9600bps | |
| Power Supply | Channel 1 Imaging Panel: 5V Channel 1 Cryocooler: 24V |
Channel 1 Imaging Panel: 5V Channel 1 Cryocooler: 12V |
| Stable Power Consumption | 7W | |
| Size (mm) | 142×58.5×71 | |
| Weight | ≤680g | |
| Working Temperature | -40°C~+60°C | |
Industrial Applications
The EYAS330G cooled AD module is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
Exhibitions
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
